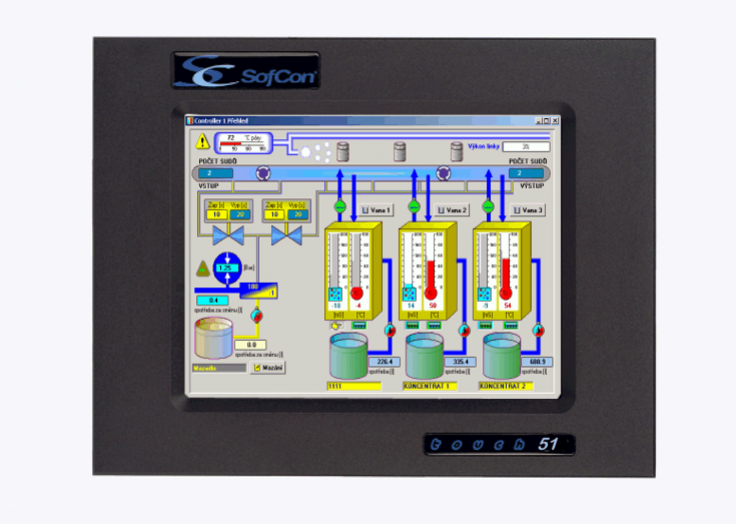

TOUCH51/MT

image 10,4" display unit


10,4" TFT LCD colour display, 800x600 pixels
Standard VGA interface, analog D-Sub15
Analog resistive touch panel
RS232 communication (touch panel)
Front-panel protection IP 65
Rack mounting



TOUCH51/MT is a 10,4" display unit with touch screen and RS232 interface. It is designed for visualisation and industrial control system automation and can be connected to any processor unit with VGA analog output with resolution 800x600 and refresh rate max 75Hz. The display unit requires 12VDC power supply and one serial port for communication between processor unit and touch screen controller. It is essential to touch the screen with fingers only, as the top layout of the screen could be damaged while using sharp or hard items.




Files to download

06_17_TOUCH51MT_en 06_17_01_TOUCH51MT_en.pdf English 140.5 kB
