PM9000

image Meter counter

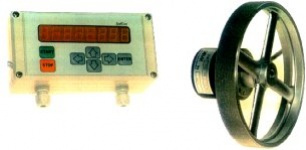

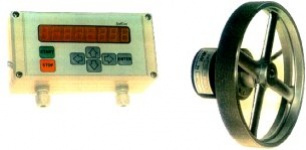

PM9000 meter counter has been designed for accurate length measuring. It consists of a control unit TERM20 and measuring wheel with revelation transducer.

The TERM20 control unit is based on a processor module that counts and displays the current count of measured meters and is able to control two adjustable meter count limits. There is a relay for each limit that disconnects the controlling contact when the given limit has been exceeded. The necessary information is displayed on an 8-digit seven-segment LED display with a digit size of 14 mm. The counter is operated with a membrane keyboard. The measuring range is from 0 to 99999.9 m with 0.005 m increments.

The operator can operate the counter using the membrane keyboard and menu showing on the display. A given menu is characterized with the first symbol on the display. The menu can be changed by pressing the 'up" or 'down' keys. The following are basic menu: display the current meter status, reset, display Limit 1 (Low), display Limit 2 (High), access the service menu. The editing is always confirmed by pressing the ENTER key. Digits are selected by pressing the direction keys of 'left' and 'right', their values can be changed by pressing the 'up' and 'down' keys.

The counter is controlled by a PIC processor with a lithium battery backup. Important parameters are stored in a serial EEPROM memory.

The counter is powered with a voltage between 12 and 30 V DC.

Basic technical data on the control unit:

Design industrial
Dimensions 70 x 160 x 60 mm
Weight 400 g
Protection IP65
Operationon temperature 0 - 50 °C
Power supply 24 VDC (12 to 30 V)
Measuring range 0 to 99999,9 m
Increment 0,005 m
Accuracyt based on the measuring wheel accuracy - 0.5%
Display 8-digit seven-segment LED
Digit size 14 mm
Keyboard membrane type
Number of keys 7 ('UP', 'DOWN', 'RIGHT','LEFT', ENTER, START, STOP)
Interface RS-485 galvanicky izolované
Relay Number 2
Contact type switching
Max. out. closing voltage 24 VDC, 220 VAC
Max. out. closing current 6 A

Basic technical data on the incremental transducer:

Type (example) IRC202
Manufactured by LARM Netolice
Number of gauge marks per rev. 100
Supply voltage 10 až 30 Vss
Current consumption 200 mA
Lead-in cable length standardní 4,5 m
Axle length 10 mm
Axle diameter 6 mm
Weight 0,25 kg
Dimensions diameter 58 mm, length approx. 70 mm
Protection IP65

Basic technical data on the measuring wheel:

Type (example) MR 542
Manufactured by IVO
Wheel circumference 0,5 m
Wheel accuracy 0,5 %
Wheel surface varying (e.g. Al, plastic, ...), depends on the material to be measured
