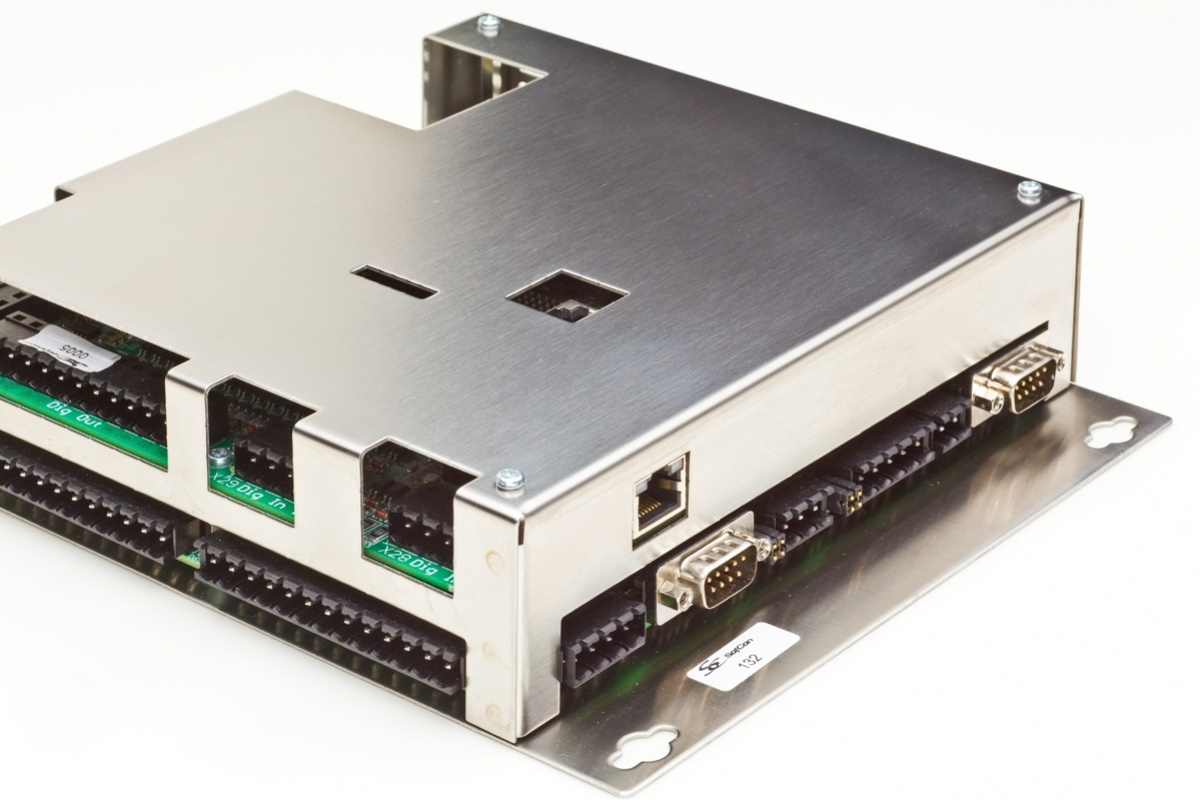

Kompakt 70

KOMPAKT 70 is a general purpose control system intended for machine control, regulation and control of heatings, air-conditioning and so on.

Basic parameters:

20 DIN inputs galvanically separated

24 DOUT outputs galvanically separated

9 AIN inputs, 12bit, 7x0-25mA, 3x0-12V

8 AOUT outputs, 8bit, 0-10V

2x Communication line RS232 (D-SUB9)

2x Communication line RS485 (Entrelec)

2x Ethernet 10/100 (RJ45)

Entrelec in-line connectors with 5.08 mm pitch

Power supply 24VDC -15/+20%
